​OF1515 ROOF MASTER

SLOPED ROOF PLATES CUTTING MADE EASY

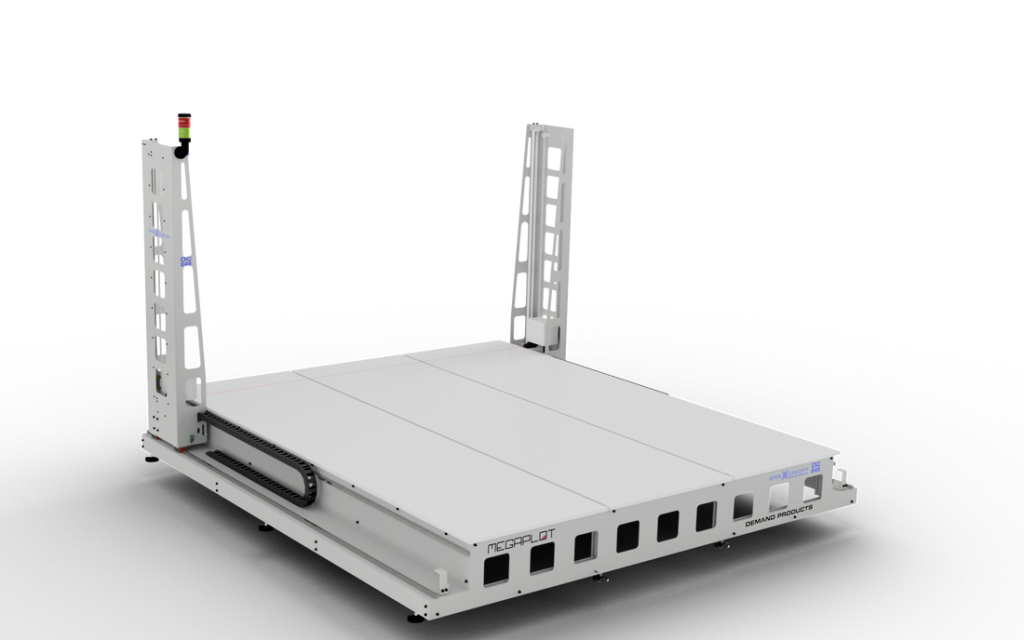

  • BEAUTIFUL INDUSTRIAL 2018 OPEN FRAME DESIGN

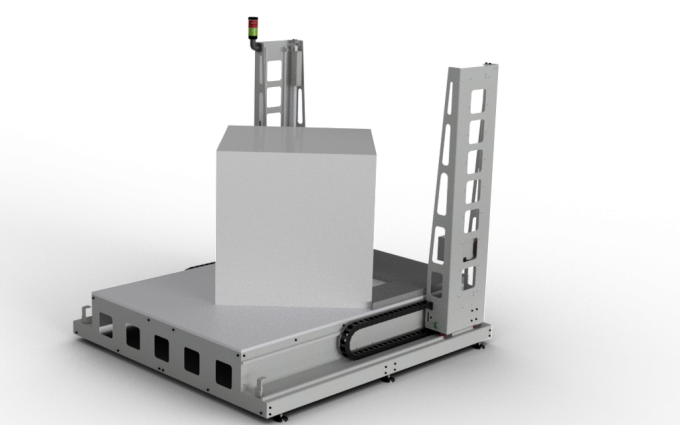

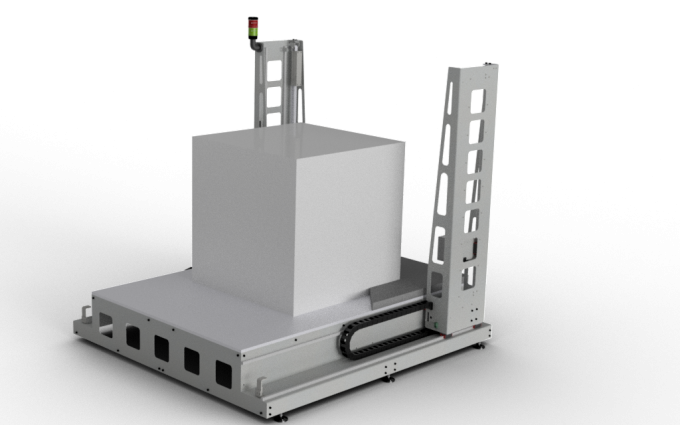

  • WORKING AREA OF 150x150 CM TO HANDLE THE 100X100 CM PLATES ALSO AT A 45-DEGREE ANGLE
  • CUSTOM MEGAROOFER APPLICATION FOR EASY PLATES CREATION
  • UNIQUE INDEPENDENT AXIS CONTROL FEATURE
  • BARCODE SCANNING & WIRED HANDHELD WITH DISPLAY
  • MAX. TRANSIT SPEED OF 10 METERS/MIN.
  • FULL TABLE FOR CONVENIENT EPS LOADING/UNLOADING
  • ​EUROPEAN QUALITY WITH CE CERTIFICATION
Have a question? Contact us

The video below presents our Open Frame Roof Master unit cutting various types of sloped roof panels.

And this video shows our larger OF2525 unit performing a few other kinds of cuts.

CUSTOM MEGAROOFER APPLICATION

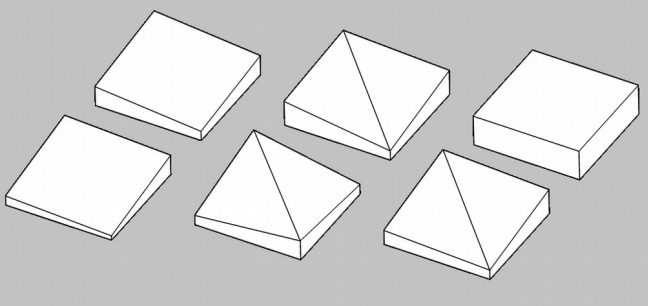

Included in the price of each OF1515 Roof Master is our custom MegaRoofer application used to easily create ready-to-cut custom drawings for all kinds sloped roofing plates, including:

  • slope plates,
  • double slope plates,
  • gutter plates,
  • ridge plates.

With a few simple clicks you can create multiple plates at the same time and then save the generated file for convenient future reference.

IXSHAPER SOFTWARE

  • unlimited free updates for all MegaPlot customers
  • extreme easy of use yet lots of powerful features
  • will work on any Windows PC with USB, including Windows 10
  • available in 11 different languages
  • complex 3D cuts made simple (based on your existing 3D models)
  • built-in support for HPGL.plt (e.g. CorelDraw), dxf (e.g. AutoCad), RAW 3D (e.g. Rhinoceros 3D), EPS/AI (e.g. AdobeIllustrator), dxf 3D (e.g. AutoCad)
  • multiple objects auto-linking & on-screed cutting simulation
  • built-in sample drawings for each type of cut
  • easy-to-use shape duplication feature
  • arch cutting feature
  • auto-stop and continuation for a broken wire replacement

iXshaper is a Windows application you install on the PC you use to control your MegaPlot machine (via USB). It is written by our own team of programmers to take full advantage of your MegaPlot hot wire cutter. As a result, it will not work with any third-party machine. Click here to learn more about iXshaper

SPECIAL FEATURES & 3D ACCESSORIES

5-WIRE MULTI WIRE ADD-ON

  • cut up to 5 identical shapes at the same time
  • adjustable for both vertical and horizontal cuts
  • 13-degree locks for standard sheeting operations
  • easy to install and take off when not needed
  • 60 cm and 120 cm long variants available
  • fully adjustable wire distances in 1 mm increments

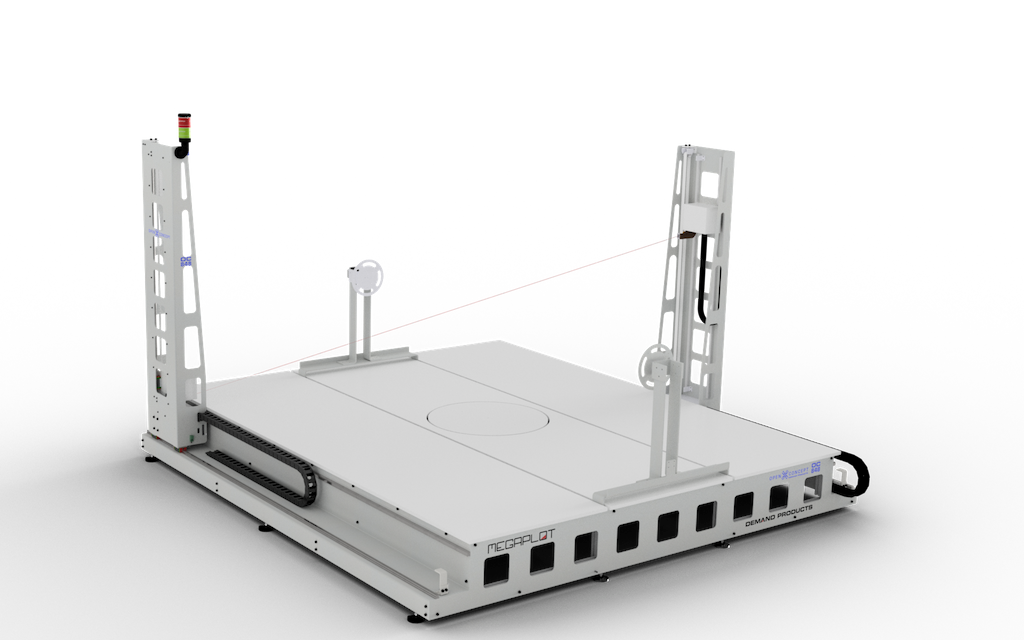

TURNTABLE

  • 3D cuts out of 3D models or a series of 2D files
  • Can cut any symmetrical or irregular shape
  • Completely automatic mode & full manual control
  • Works with the straight cutting wire and also shapewire
  • Support for PLT, DXF, EPS/AI, RAW 3D , STL and DXF 3D
  • Powerful and precise movement mechanism
  • Easy to use yet offering unlimited possibilities

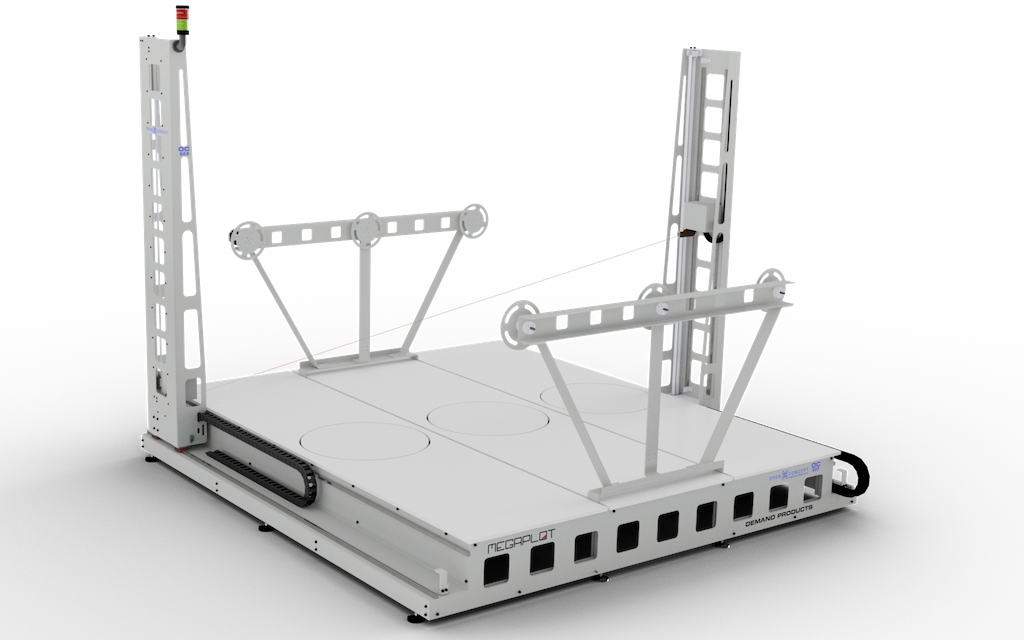

  • Up to 3 turntables on the same machine

LATHE

  • perfect for columns and balusters
  • easy-to-use with built-in rotary and lathe modes
  • supports the straight cutting wire as well as shapewire
  • create creative twisted shapes
  • grooves, threads and similar 3D features
  • powerful and precise mechanism
  • software-controller but also full manual control

SHAPEWIRE BAR

  • temporarily replaces the straight wire to produce interesting rotary shapes
  • works with both turntable and lathe
  • perfect for grooves, threads and similar shapes
  • 1 mm thick shapeable wire (reusable)
  • will heat up to 50 cm long pieces of shapewire bar
  • easy to install and remove when not needed

INDEPENDENT AXIS CONTROL

  • unique load cell and motor-controlled unlimited wire length change feature
  • advanced software-based wire tension and heating control
  • consistent wire temperature and tension regardless of current length
  • will cut all kinds of tapered shapes
  • material width and position calculations
  • simple two-color drawings support
  • unlimited trolleys' offset

WIRED HANDHELD/REMOTE CONTROLLER WITH A DISPLAY

  • convenient overview of current machine parameters:
    • wire location
    • wire heating status and power
    • wire tension (independent axis control units)
    • limit switches status
  • on-the-fly adjustment of parameters during a cut: increase/decrease wire temperature, increase/decrease cutting speed
  • start/stop/continue a cut
  • full manual control of machine movement in all axes

BAR CODE READER

  • convenient workflow enhancement to save time and cut down on human errors
  • save you current job (drawings and configuration parameters) to a pdf file with a unique custom barcode
  • print out the pdf and scan the barcode to easily re-open all drawings and configuration settings associated with it
  • built-in barcode manager with unlimited number of sets/pdfs
  • simple plug'n'play solution with iXshaper support built-in requiring no special drivers
  • requires an additional free USB port on your PC (apart from the one used to connect the machine to)

TITANIUM WIRE ®

  • best resistant hot wire on the market. Period.
  • custom made for MegaPlot machines to ensure limited stretching and breakage
  • can withstand higher temperature to increase cutting speed
  • can be tensioned more to ensure accurate cuts
  • available as a paid upgrade for all Twister Pro series units
  • included in the price of all independent axis units
  • available in new diameters: 0.15, 0.25, 0.30, 0.35, 0.45, 0.55 and 0.6 mm
  • can be added to an existing machine to improve performance

TECHNICAL SPECIFICATION

WORKING WIDTH = CUTTING WIRE LENGTH 150 cm
WORKING LENGTH 150 cm
WORKING HEIGHT 123 cm, upgradeable to 184 cm
MAX. TRANSIT SPEED 10.000 cm/min.
CUTTING WIRE 0.30 mm
TitaniumWire, spring or electric-tensioned
X & Y DRIVES 8Nm stepper motors & 25AT5 cog belts
SOFTWARE RESOLUTION 0.001 mm
INCLUDED ACCESSORIES Independent Axis Control
TurnTables
BarCode Scanning
5-wire MW add-on
Handheld/Remote Controller
ACCESSORIES NOT AVAILABLE IN OF1515 ROOF MASTER SERIES Lathe
ShapeWire
​DoubleWire
Pneumatic Wire Tensioning
POWER REQUIREMENTS 230V, 50Hz, up to 1KW with 5-wire MW add-on
PC REQUIREMENTS Windows XP, Vista, 7, 8 or 10
SOFTWARE iXshaper, unlimited free updates, support for:
plt, dxf, EPS/AI, RAW 3D
MegaRoofer
WARRANTY complete 5-year warranty on EXW (ex-works) basis
INCLUDED IN THE PRICE hot wire cutting machine
ARM-based electronic controller
iXshaper software with unlimited free updates
a 100-gram spool of cutting wire
barcode scanner
remote controller/handheld
assembly and operational manuals
year-round tech support
​unlimited free training in our factory in Poland
NOT INCLUDED IN THE PRICE Windows PC necessary to control the machine
graphics software, e.g. CorelDraw
installation and training on site (if required)

Complete 5-year warranty on all CNC hot wire foam cutters made by MEGAPLOT with 24/7 technical support at your disposal.
