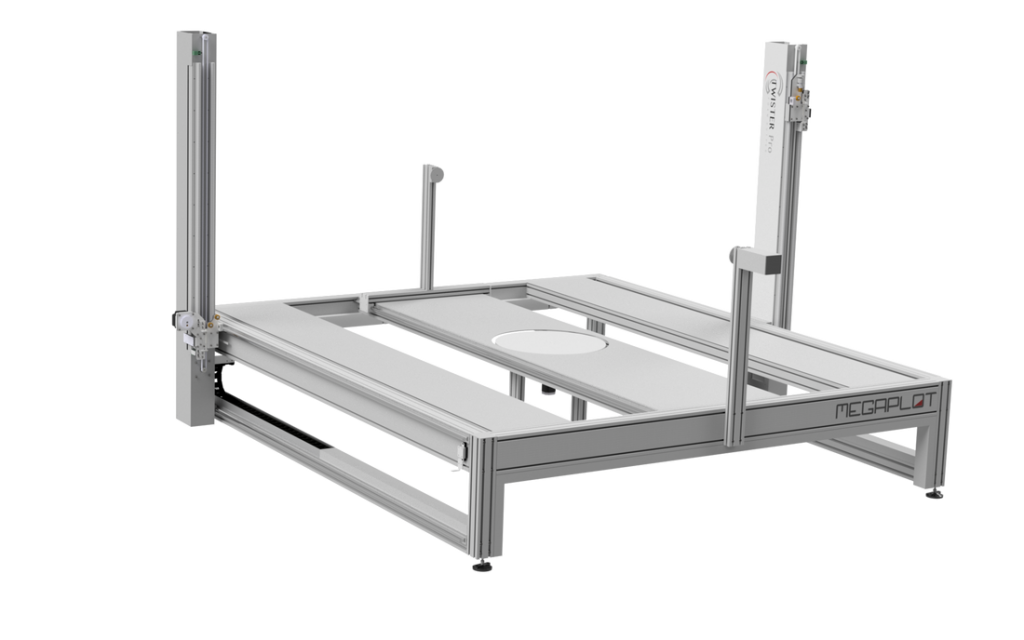

Twister Pro Series

NEW "2020" SERIES WITH A BEAUTIFUL ALL NEW DESIGN
BUILT-IN INDUSTRIAL WINDOWS 10 TOUCH PC
UNIQUE INDEPENDENT AXIS CONTROL FEATURE
MULTIPLE 3D OPTIONS: TURNTABLES, LATHE, SHAPEWIRE BAR
EUROPEAN QUALITY WITH CE CERTIFICATION
BACKED BY MEGAPLOT'S 25+ YEARS OF MANUFACTURING EXPERIENCE

Have a question? Contact us

office@megaplot.com

+48 32 291 08 71

Send inquiry

STANDARD WORKING AREAS

CUSTOM SIZES AVAILABLE UPON REQUEST.

	MACHINE WIDTH/WIRE LENGTH	MACHINE LENGTH
TWISTER PRO 1313 [444]	1300 MM [4 FT.]	1300 MM [4 FT.]
TWISTER PRO 1324 [844]	1300 MM [4 FT.]	2400 MM [8 FT.]
TWISTER PRO 1330 [8410]	1300 MM [4 FT.]	3000 MM [10 FT.]
TWISTER PRO 1524 [845]	1500 MM [5 FT.]	2400 MM [8 FT.]
TWISTER PRO 2024 [846 1/2]	2000 MM [6 1/2 FT.]	2400 MM [8 FT.]
TWISTER PRO 2524 [848]	2500 MM [8 FT.]	2400 MM [8 FT.]
TWISTER PRO 3030 [10410]	3000 MM [10 FT.]	3000 MM [10 FT.]
TWISTER PRO 4040 [13413]	4000 MM [13 FT.]	4000 MM [13 FT.]

NEED A SMALLER UNIT FOR XPS CUTTING? PLEASE CHECK OUR P60 SERIES

NEED MORE CUTTING WIRES? PLEASE CHECK OUR MULTIWIRE MW SERIES.

STANDARD CONFIGURATIONS:

CUSTOM CONFIGURATIONS AVAILABLE UPON REQUEST.

Value	“STANDARD” TWISTER PRO MODELS	“PLUS” TWISTER PRO MODELS
NUMBER OF CUTTING WIRES	1	1
WIRE TENSIONING	SPRING OR PNEUMATIC	MOTOR/ELECTRIC
BUILT-IN INDUSTRIAL WINDOWS 10 TOUCH PC	YES	YES
2D CUTTING	YES	YES
3D – INDEPENDENT AXIS CONTROL	NO	YES
3D – TURNTABLE	NO	YES (UP TO 3 PCS.)
3D – HORIZONTAL LATHE	NO	YES
3D – SHAPE WIRE BAR	NO	YES

IXSHAPER SOFTWARE

Completely new touch friendly interface & ease of use
Unlimited free updates for all megaplot Customers
Windows 10 support
available in 11 language versions
advanced 3D cutting modes
support for PLT, DXF, EPS/AI, RAW 3D , STL and DXF 3D
on-screen pre-cut simulation
auto-linking of individual shapes
duplication and arch cutting features
cutting continuation after the cutting wire breaks

iXshaper is a Windows application megaplot writes and provides with each of our machines which is Installed on The built-in Windows 10 touch PC integrated into the electronic controller of each twister pro unit. Click here to learn more about iXshaper.

SPECIAL FEATURES & 3D ACCESSORIES

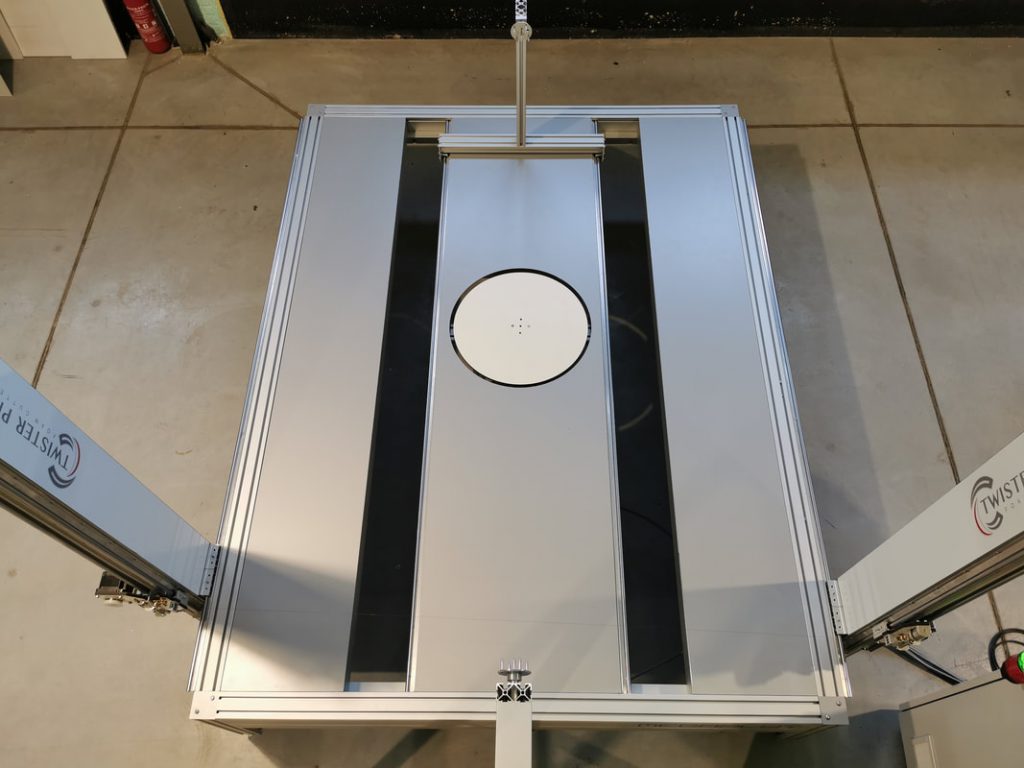

TURNTABLE

3D cuts out of 3D models or a series of 2D files
Can cut any symmetrical or irregular shape
Completely automatic mode & full manual control
Works with the straight cutting wire and also shapewire
Support for PLT, DXF, EPS/AI, RAW 3D , STL and DXF 3D
Powerful and precise movement mechanism
Easy to use yet offering unlimited possibilities

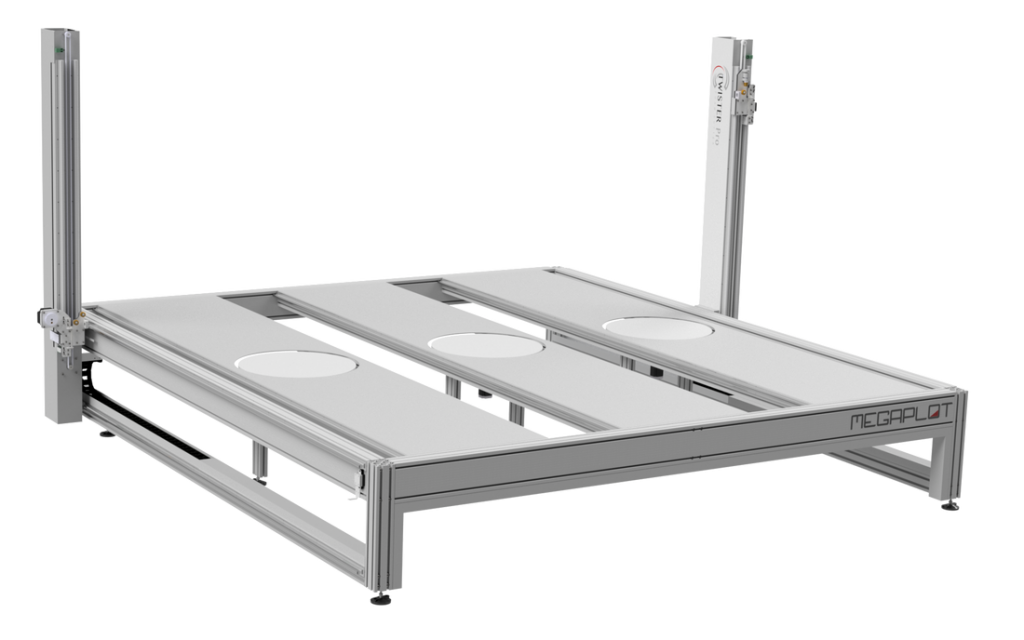

Up to 3 turntables on the same machine

LATHE

perfect for columns and balusters
easy-to-use with built-in rotary and lathe modes
supports the straight cutting wire as well as shapewire
create creative twisted shapes
grooves, threads and similar 3D features
powerful and precise mechanism
software-controller but also full manual control

SHAPEWIRE BAR

temporarily replaces the straight wire to produce interesting rotary shapes
works with both turntable and lathe
perfect for grooves, threads and similar shapes
1 mm thick shapeable wire (reusable)
will heat up to 50 cm long pieces of shapewire bar
easy to install and remove when not needed

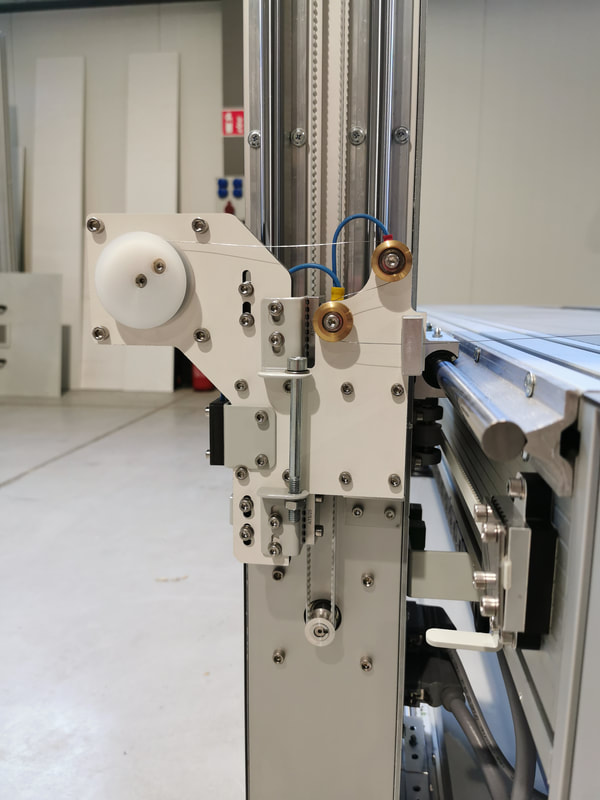

INDEPENDENT AXIS CONTROL

unique load cell and motor-controlled unlimited wire length change feature
advanced software-based wire tension and heating control
consistent wire temperature and tension regardless of current length
will cut all kinds of tapered shapes
material width and position calculations
simple two-color drawings support
unlimited trolleys' offset

WIRED HANDHELD/REMOTE CONTROLLER WITH A DISPLAY

convenient overview of current machine parameters:
- wire location
- wire heating status and power
- wire tension (independent axis control units)
- limit switches status
on-the-fly adjustment of parameters during a cut: increase/decrease wire temperature, increase/decrease cutting speed
start/stop/continue a cut
full manual control of machine movement in all axes

TITANIUM WIRE ®

best resistant hot wire on the market. Period.
custom made for MegaPlot machines to ensure limited stretching and breakage
can withstand higher temperature to increase cutting speed
can be tensioned more to ensure accurate cuts
available as a paid upgrade for all Twister Pro series units
included in the price of all independent axis units
available in new diameters: 0.15, 0.25, 0.30, 0.35, 0.45, 0.55 and 0.6 mm
can be added to an existing machine to improve performance

TECHNICAL SPECIFICATION

WORKING WIDTH = CUTTING WIRE LENGTH	1300-4000 MM [4-13 FT]
WORKING LENGTH	1300-4000 MM [4-13 FT]
WORKING HEIGHT	1220 MM [4 FT]
MAX. TRANSIT SPEED	5 METERS/MIN.
CUTTING WIRE	TITANIUM WIRE SPRING, PNEUMATIC OR MOTOR/ELECTRIC TENSIONING 0.25-0.6 MM WIRE DIAMETERS
X & Y DRIVES	STEPPER MOTORS, COG BELTS, ROUND LINEAR RAIL
SOFTWARE RESOLUTION	0.001 mm
POWER REQUIREMENTS	115-230V, 50/60 Hz, UP TO 1 KW

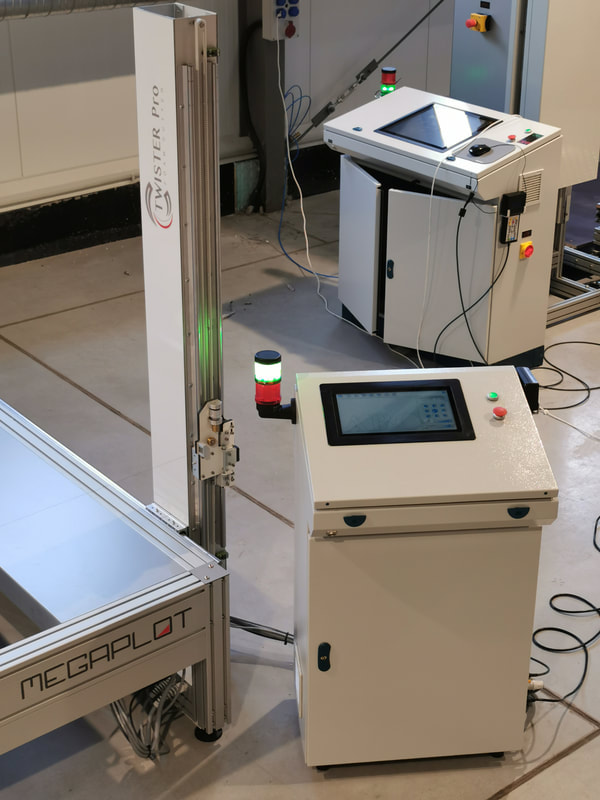

BUILT-IN PC	INDUSTRIAL FANLESS WINDOWS 10 TOUCH PC
SOFTWARE	INCLUDED: IXSHAPER WITH UNLIMITED FREE UPDATES NOT INCLUDED: GRAPHICS SOFTWARE (E.G. CORELDRAW, AUTOCAD, ETC.)
WARRANTY	COMPLETE 5-YEAR WARRANTY ON EXW (EX-WORKS) TERMS
INCLUDED IN THE PRICE OF EACH TWISTER PRO UNIT	HOT WIRE CUTTING MACHINE STAND-ALONE ELECTRONIC CONTROLLER WITH A BUILT-IN WINDOWS 10 PC IXSHAPER SOFTWARE WITH UNLIMITED FREE UPDATES A 50-GRAM SPOOL OF TITANIUM WIRE REMOTE CONTROLLER/HANDHELD ASSEMBLY AND OPERATIONAL MANUALS YEAR-ROUND TECH SUPPORT UNLIMITED FREE TRAINING IN OUR FACTORY IN POLAND

Complete 5-year warranty on all CNC hot wire foam cutters made by MEGAPLOT with 24/7 technical support at your disposal.
