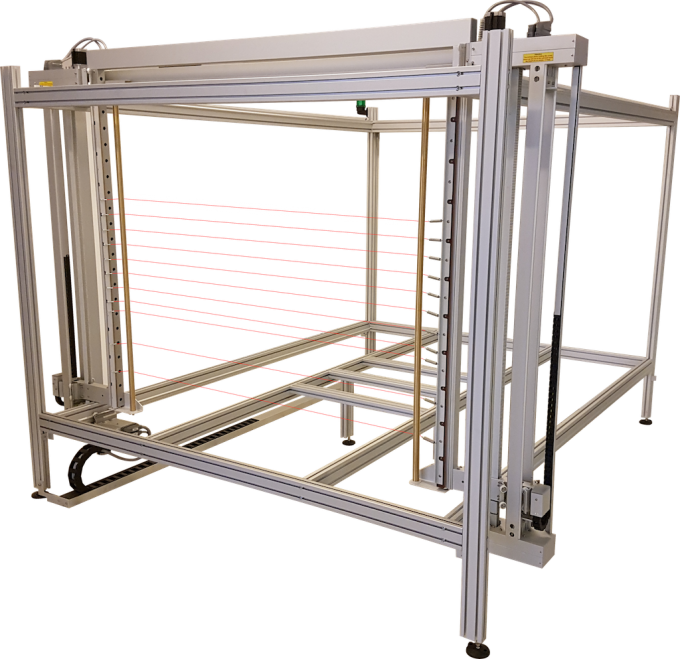

MULTIWIRE MW SERIES OF EPS CUTTING MACHINES

INDUSTRIAL HIGH YIELD UNITS WITH MULTIPLE CUTTING WIRES

10 CUTTING WIRES
ALSO AVAILABLE 20-WIRE HD VARIANTS
SPRING- OR PNEUMATICALLY-TENSIONED WIRES
130-300 CM WIRE LENGTHS
MULTIPLE SIZES AND CONFIGURATIONS AVAILABLE
OPTIONAL 3D FEATURES (TURNTABLES, LATHES, ETC.)
MAX. TRANSIT SPEED OF 2 METERS/MIN.
EUROPEAN QUALITY WITH CE CERTIFICATION
BACKED BY MEGAPLOT'S 20+ YEARS OF DESIGN EXPERIENCE

Have a question? Contact us

office@megaplot.com

+48 32 291 08 71

Send inquiry

3D CUT ON TURNTABLE

MULTIWIRE CUT

SHAPEWIRE CUT

STANDARD MODELS/CONFIGURATIONS

"Z" = MACHINE WIDTH = CUTTING WIRES' LENGTH

This dimension determines e.g. the max. length of your 2D moulding.

"X" = MACHINE LENGTH

This dimension determines. e.g. the max. length of your column cut on the lathe.

"Y" - MACHINE HEIGHT

This dimension (always around 1220-1300 mm on standard MegaPlot machines) determines the max. height of the EPS block that will fit on the machine.

	"X" OF 130 CM "SMALL"	"X" OF 240 CM "MEDIUM"	"X" OF 305 CM "LARGE"
"Z" OF 130 CM (MW1300)	MW 1300 SMALL	MW 1300 MEDIUM	MW 1300 LARGE
"Z" OF 150 CM (MW1500)	MW 1500 SMALL	MW 1500 MEDIUM	MW 1500 LARGE
"Z" OF 250 CM (MW2500)	MW 2500 SMALL	MW 2500 MEDIUM	MW 2500 LARGE
"Z" OF 300 CM (MW3000)	MW 3000 SMALL	MW 3000 MEDIUM	MW 3000 LARGE

CUSTOM SIZES AND CONFIGURATIONS AVAILABLE - please contact us for details

Looking for a beautiful industrial solution? Check out our new Open Frame series.

Need a single-wire or independent axis unit? Please check our Twister PRO series.

Need a simple and small sign show cutter? Consider our P60 series.

IXSHAPER SOFTWARE

unlimited free updates for all MegaPlot customers
extreme easy of use yet lots of powerful features
will work on any Windows PC with USB, including Windows 10
available in 11 different languages
complex 3D cuts made simple (based on your existing 3D models)
built-in support for HPGL.plt (e.g. CorelDraw), dxf (e.g. AutoCad), RAW 3D (e.g. Rhinoceros 3D), EPS/AI (e.g. AdobeIllustrator), dxf 3D (e.g. AutoCad)
multiple objects auto-linking & on-screed cutting simulation
built-in sample drawings for each type of cut
easy-to-use shape duplication feature
arch cutting feature
auto-stop and continuation for a broken wire replacement

iXshaper is a Windows application you install on the PC you use to control your MegaPlot machine (via USB). It is written by our own team of programmers to take full advantage of your MegaPlot hot wire cutter. As a result, it will not work with any third-party machine. Click here to learn more about iXshaper

SPECIAL FEATURES & 3D ACCESSORIES

5-WIRE MULTI WIRE ADD-ON

cut up to 5 identical shapes at the same time
adjustable for both vertical and horizontal cuts
13-degree locks for standard sheeting operations
easy to install and take off when not needed
60 cm and 120 cm long variants available
fully adjustable wire distances in 1 mm increments

TURNTABLE

3D cuts out of 3D models or a series of 2D files
Can cut any symmetrical or irregular shape
Completely automatic mode & full manual control
Works with the straight cutting wire and also shapewire
Support for PLT, DXF, EPS/AI, RAW 3D , STL and DXF 3D
Powerful and precise movement mechanism
Easy to use yet offering unlimited possibilities
Up to 3 turntables on the same machine

LATHE

perfect for columns and balusters
easy-to-use with built-in rotary and lathe modes
supports the straight cutting wire as well as shapewire
create creative twisted shapes
grooves, threads and similar 3D features
powerful and precise mechanism
software-controller but also full manual control

SHAPEWIRE BAR

temporarily replaces the straight wire to produce interesting rotary shapes
works with both turntable and lathe
perfect for grooves, threads and similar shapes
1 mm thick shapeable wire (reusable)
will heat up to 50 cm long pieces of shapewire bar
easy to install and remove when not needed

WIRE TENSIONING - 3 OPTIONS

MW units with the cutting wires of up to 2500 mm come with spring tensioning in one of two forms - either individual spring tensioners or a threaded rod - please contact us if unsure which one is best for you
machines with the cutting wires of 3000 mm or more come with pneumatic wire tensioners for increased wire tension (this is also an optional upgrade for all 2500 mm wide units)
note the pneumatic wire tensioning requires a small air compressor (not included in the price)
the threaded rod option allows precise wire positioning in 1 mm increments

WIRED HANDHELD/REMOTE CONTROLLER WITH A DISPLAY

convenient overview of current machine parameters:
- wire location
- wire heating status and power
- wire tension (independent axis control units)
- limit switches status
on-the-fly adjustment of parameters during a cut: increase/decrease wire temperature, increase/decrease cutting speed
start/stop/continue a cut
full manual control of machine movement in all axes

TITANIUM WIRE ®

best resistant hot wire on the market. Period.
custom made for MegaPlot machines to ensure limited stretching and breakage
can withstand higher temperature to increase cutting speed
can be tensioned more to ensure accurate cuts
available as a paid upgrade for all Twister Pro series units
included in the price of all independent axis units
available in new diameters: 0.15, 0.25, 0.30, 0.35, 0.45, 0.55 and 0.6 mm
can be added to an existing machine to improve performance

TECHNICAL SPECIFICATION

WORKING WIDTH = CUTTING WIRE LENGTH	130 cm (MW1300) 150 cm (MW1500) 250 cm (MW2500) 300 cm (MW3000)
WORKING LENGTH	130 cm (Small) 240 cm (Medium) 305 cm (Large)
WORKING HEIGHT	123 cm
MAX. TRANSIT SPEED	200 cm/min.
CUTTING WIRES	1-10 wires (up to 20 in custom HD variants) TitaniumWire 0.25-0.60 mm (depending on machine width) wire tensioning: individual spring tensioners OR threaded rod OR pneumatic tensioners
X & Y DRIVES	stepper motors & 25AT5 and 10T5 cog belts
SOFTWARE RESOLUTION	0.001 mm
OPTIONAL ACCESSORIES	TurnTable Lathe ShapeWire Bar TitaniumWire (included with all units) Handheld/Remote Controller (included with all units)
ACCESSORIES NOT AVAILABLE IN MW SERIES	Independent Axis Control BarCode Scanning
POWER REQUIREMENTS	230V, 50Hz, up to 4KW (10 wires on MW3000)
PC REQUIREMENTS	Windows XP, Vista, 7, 8 or 10
SOFTWARE	iXshaper, unlimited free updates, support for: plt, dxf, EPS/AI, RAW 3D
WARRANTY	complete 5-year warranty on EXW (ex-works) basis
INCLUDED IN THE PRICE	hot wire cutting machine ARM-based electronic controller iXshaper software with unlimited free updates a 100-gram spool of TitaniumWire remote controller/handheld assembly and operational manuals year-round tech support unlimited free training in our factory in Poland
NOT INCLUDED IN THE PRICE	Windows PC necessary to control the machine graphics software, e.g. CorelDraw installation and training on site (if required)

Complete 5-year warranty on all CNC hot wire foam cutters made by MEGAPLOT with 24/7 technical support at your disposal.
