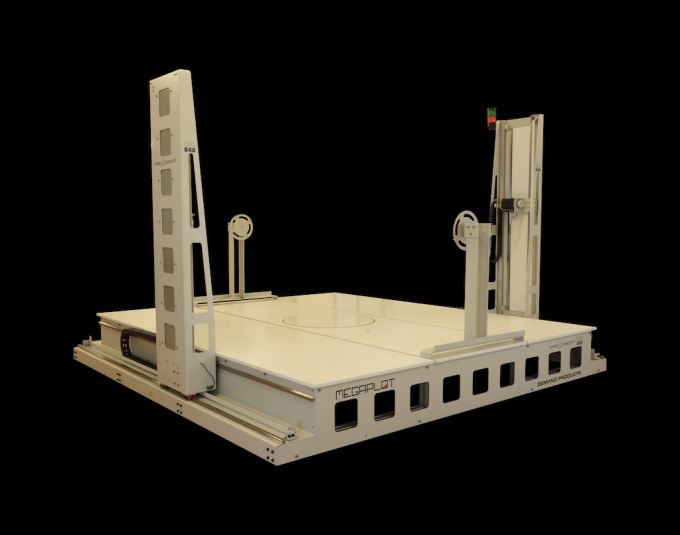

OPEN FRAME Series

NEW 2018 SERIES

BEAUTIFUL INDUSTRIAL DESIGN
WORKING AREAS/TABLES OF 250x250 or 300x300 CM
UNIQUE INDEPENDENT AXIS CONTROL FEATURE
UP TO 3 TURNTABLES AND UP TO 3 LATHES
MULTIPLES 3D OPTIONS
BARCODE SCANNING, WIRED HANDHELD WITH DISPLAY
MAX. TRANSIT SPEED OF 10 METERS/MIN.
FULL TABLE FOR CONVENIENT EPS LOADING/UNLOADING
EUROPEAN QUALITY WITH CE CERTIFICATION
BACKED BY MEGAPLOT'S 20+ YEARS OF DESIGN EXPERIENCE

Get a free quote - send an inquiry

office@megaplot.com

+48 32 291 08 71

Get a Free Quote

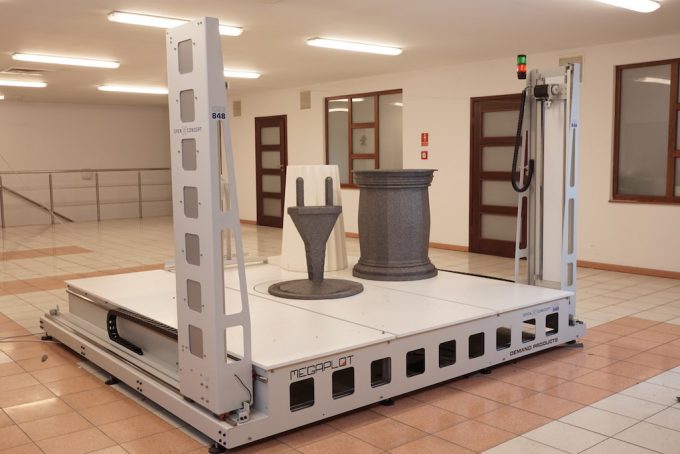

STANDARD MODELS/CONFIGURATIONS

	"STANDARD" SERIES	"PLUS" SERIES

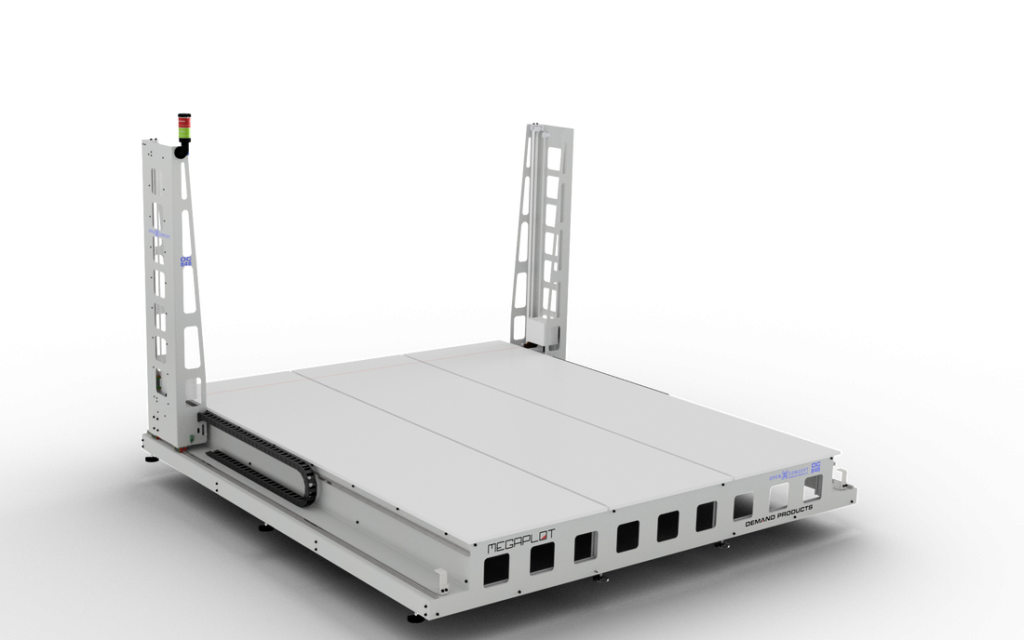

WORKING AREA/TABLE SIZE OF 2500x2500 MM	OF2525S	OF2525P
WORKING AREA/TABLE SIZE OF 3000x3000 MM	OF3030S	OF3030P
3D FEATURES	NOT AVAILABLE	INDEPENDENT AXIS CONTROL TURNTABLE LATHE SHAPEWIRE BAR
2 ADDITIONAL TURNTABLES AND 2 ADDITIONAL LATHES	NOT AVAILABLE	AVAILABLE
WORKING HEIGHT	1230 mm (upgradeable to 1840 mm)	1230 mm (upgradeable to 1840 mm)
5-WIRE MW ADD-ON (60 OR 120 CM)	AVAILABLE	AVAILABLE

CUSTOM SIZES AND CONFIGURATIONS AVAILABLE - please contact us for details about hot wire CNC foam cutter quote.

Need something smaller? Please check our P60 series or Twister Pro series.

Need more cutting wires? Consider the multiwire MW series.

ALSO AVAILABLE IN A SPECIAL OF1515 ROOF MASTER CONFIGURATION

IDEAL FOR SLOPED ROOF PLATES CUTTING

Special features available only on the OF1515 ROOF MASTER:

150x150 cm working table
can handle 100x100 cm plates also at the 45 degree angle
will cut all 6 plate types shown on the right
custom MegaRoofer application for easy drawings' generation
TurnTable for other 3D cutting
custom material holder for precise 0 and 45 degree positioning
small footprint, high yield solution

IXSHAPER SOFTWARE

unlimited free updates for all MegaPlot customers
extreme easy of use yet lots of powerful features
will work on any Windows PC with USB, including Windows 10
available in 11 different languages
complex 3D cuts made simple (based on your existing 3D models)
built-in support for HPGL.plt (e.g. CorelDraw), dxf (e.g. AutoCad), RAW 3D (e.g. Rhinoceros 3D), EPS/AI (e.g. AdobeIllustrator), dxf 3D (e.g. AutoCad)
multiple objects auto-linking & on-screed cutting simulation
built-in sample drawings for each type of cut
easy-to-use shape duplication feature
arch cutting feature
auto-stop and continuation for a broken wire replacement

iXshaper is a Windows application you install on the PC you use to control your MegaPlot machine (via USB). It is written by our own team of programmers to take full advantage of your MegaPlot hot wire CNC cutter. As a result, it will not work with any third-party machine. Click here to learn more about iXshaper

SPECIAL FEATURES & 3D ACCESSORIES

5-WIRE MULTI WIRE ADD-ON

cut up to 5 identical shapes at the same time
adjustable for both vertical and horizontal cuts
13-degree locks for standard sheeting operations
easy to install and take off when not needed
60 cm and 120 cm long variants available
fully adjustable wire distances in 1 mm increments

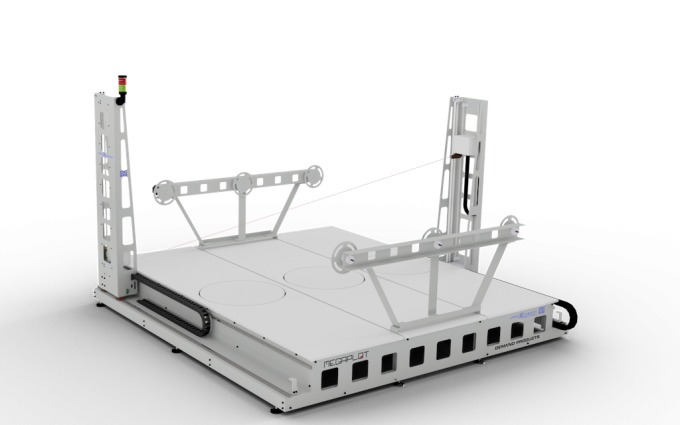

TURNTABLE

3D cuts out of 3D models or a series of 2D files
Can cut any symmetrical or irregular shape
Completely automatic mode & full manual control
Works with the straight cutting wire and also shapewire
Support for PLT, DXF, EPS/AI, RAW 3D , STL and DXF 3D
Powerful and precise movement mechanism
Easy to use yet offering unlimited possibilities
Up to 3 turntables on the same machine

LATHE

perfect for columns and balusters
easy-to-use with built-in rotary and lathe modes
supports the straight cutting wire as well as shapewire
create creative twisted shapes
grooves, threads and similar 3D features
powerful and precise mechanism
software-controller but also full manual control

SHAPEWIRE BAR

temporarily replaces the straight wire to produce interesting rotary shapes
works with both turntable and lathe
perfect for grooves, threads and similar shapes
1 mm thick shapeable wire (reusable)
will heat up to 50 cm long pieces of shapewire bar
easy to install and remove when not needed

INDEPENDENT AXIS CONTROL

unique load cell and motor-controlled unlimited wire length change feature
advanced software-based wire tension and heating control
consistent wire temperature and tension regardless of current length
will cut all kinds of tapered shapes
material width and position calculations
simple two-color drawings support
unlimited trolleys' offset

WIRED HANDHELD/REMOTE CONTROLLER WITH A DISPLAY

convenient overview of current machine parameters:
- wire location
- wire heating status and power
- wire tension (independent axis control units)
- limit switches status
on-the-fly adjustment of parameters during a cut: increase/decrease wire temperature, increase/decrease cutting speed
start/stop/continue a cut
full manual control of machine movement in all axes

BAR CODE READER

convenient workflow enhancement to save time and cut down on human errors
save you current job (drawings and configuration parameters) to a pdf file with a unique custom barcode
print out the pdf and scan the barcode to easily re-open all drawings and configuration settings associated with it
built-in barcode manager with unlimited number of sets/pdfs
simple plug'n'play solution with iXshaper support built-in requiring no special drivers
requires an additional free USB port on your PC (apart from the one used to connect the machine to)

TITANIUM WIRE ®

best resistant hot wire on the market. Period.
custom made for MegaPlot machines to ensure limited stretching and breakage
can withstand higher temperature to increase cutting speed
can be tensioned more to ensure accurate cuts
available as a paid upgrade for all Twister Pro series units
included in the price of all independent axis units
available in new diameters: 0.15, 0.25, 0.30, 0.35, 0.45, 0.55 and 0.6 mm
can be added to an existing machine to improve performance

TECHNICAL SPECIFICATION

WORKING WIDTH = CUTTING WIRE LENGTH	150 cm (OF1515) 250 cm (OF2525) 300 cm (OF3030)
WORKING LENGTH	150 cm (OF1515) 250 cm (OF2525) 300 cm (OF3030)
WORKING HEIGHT	123 cm, upgradeable to 184 cm
MAX. TRANSIT SPEED	10 meters/min.
CUTTING WIRE	0.30 mm (OF1515) 0.45 mm (OF2525) 0.55 (OF3030) TitaniumWire, spring or electric-tensioned
X & Y DRIVES	8Nm stepper motors & 25AT5 cog belts
SOFTWARE RESOLUTION	0.001 mm
OPTIONAL ACCESSORIES	Independent Axis Control ("Plus" models) up to 3 TurnTables ("Plus" models) up to 3 Lathes ("Plus" models) ShapeWire Tool ("Plus" models) Independent Axis Control ("Plus" models) BarCode Scanning (included with all units) 5-wire MW add-on (available for all units) Handheld/Remote Controller (included with all units)
ACCESSORIES NOT AVAILABLE IN OPEN FRAME SERIES	DoubleWire (n/a due to 5-wire MW add-on) Pneumatic Wire Tensioning
POWER REQUIREMENTS	230V, 50Hz, from 500W up to 2KW (5-wire MW add-on on OF3030)
PC REQUIREMENTS	Windows XP, Vista, 7, 8 or 10
SOFTWARE	iXshaper, unlimited free updates, support for: plt, dxf, EPS/AI, RAW 3D
WARRANTY	complete 5-year warranty on EXW (ex-works) basis
INCLUDED IN THE PRICE	hot wire cutting machine ARM-based electronic controller iXshaper software with unlimited free updates a 100-gram spool of cutting wire barcode scanner remote controller/handheld assembly and operational manuals year-round tech support unlimited free training in our factory in Poland
NOT INCLUDED IN THE PRICE	Windows PC necessary to control the machine graphics software, e.g. CorelDraw installation and training on site (if required)
