P60 Series

BEST SELLING SIGN SHOP SOLUTION

SMALL FOOTPRINT
A 60 CM LONG CUTTING WIRE
IDEAL FOR LOGOS, LETTERING AND SMALL DECORATIONS

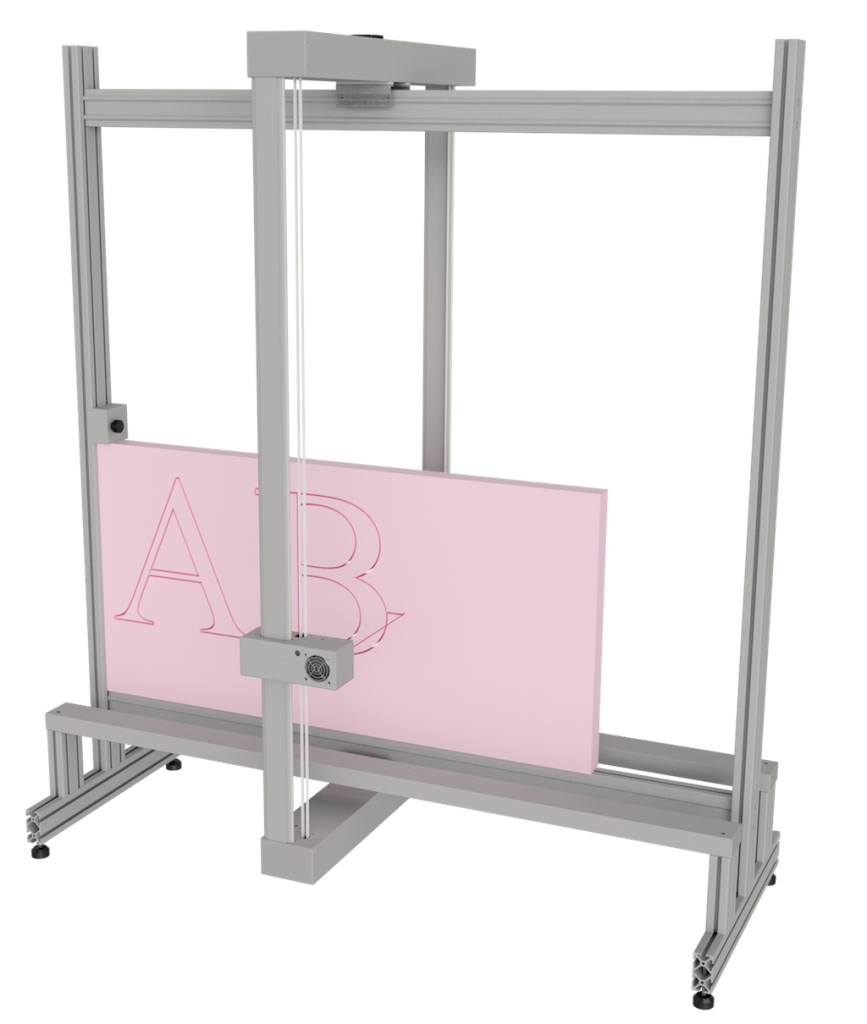

CAN CUT XPS PLATES IN VERTICAL AND HORIZONTAL ORIENTATIONS AS WELL AS SMALL EPS BLOCKS
OPTIONAL TURNTABLE/LATHE FOR 3D CUTTING
VERY FINE 0.15 MM CUTTING WIRE FOR PRECISE CUTS
PACKED IN A SINGLE BOX, EASY TO SELF-ASSEMBLE
EUROPEAN QUALITY WITH CE CERTIFICATION
BACKED BY MEGAPLOT'S 20+ YEARS OF DESIGN EXPERIENCE

Have a question? Contact us

office@megaplot.com

+48 32 291 08 71

Send inquiry

STANDARD MODELS/CONFIGURATIONS

	P 60 SMALL	P 60 MEDIUM	P 60 LARGE
WORKING AREA: WIDTH = CUTTING WIRE LENGTH	60 CM	60 CM	60 CM
WORKING AREA: LENGTH	130 CM	240 CM	305 CM
WORKING AREA: HEIGHT	122 CM	122 CM	122 CM

CUSTOM SIZES AND CONFIGURATIONS AVAILABLE - please contact us for details

Need something larger? Please check our Twister PRO series.

Need more cutting wires? Consider the multiwire MW series.

Looking for a beautiful industrial solution? Check out our Open Frame series.

IXSHAPER SOFTWARE

unlimited free updates for all MegaPlot customers
extreme easy of use yet lots of powerful features
will work on any Windows PC with USB, including Windows 10
available in 11 different languages
complex 3D cuts made simple (based on your existing 3D models)
built-in support for HPGL.plt (e.g. CorelDraw), dxf (e.g. AutoCad), RAW 3D (e.g. Rhinoceros 3D), EPS/AI (e.g. AdobeIllustrator), dxf 3D (e.g. AutoCad)
multiple objects auto-linking & on-screed cutting simulation
built-in sample drawings for each type of cut
easy-to-use shape duplication feature
arch cutting feature
auto-stop and continuation for a broken wire replacement

iXshaper is a Windows application you install on the PC you use to control your MegaPlot machine (via USB). It is written by our own team of programmers to take full advantage of your MegaPlot hot wire cutter. As a result, it will not work with any third-party machine. Click here to learn more about iXshaper

SPECIAL FEATURES & 3D ACCESSORIES

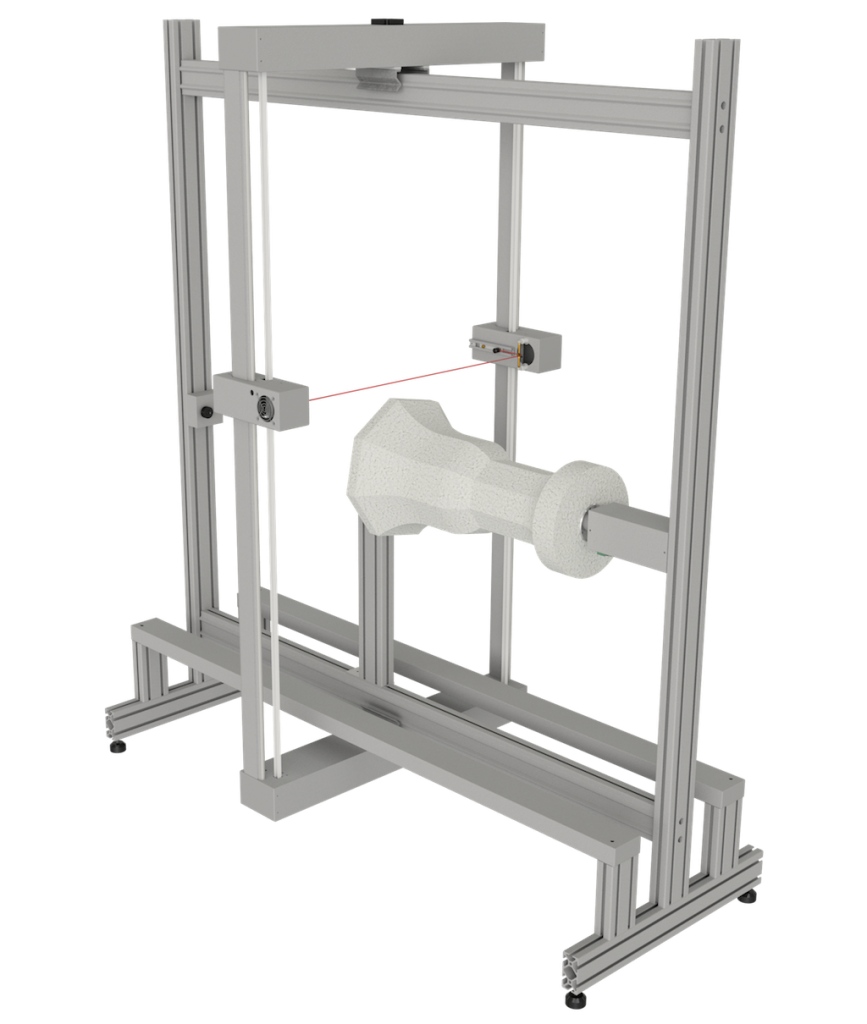

TURNTABLE/LATHE

In the P60 series, TurnTable and Lathe are one and the same tool which can be installed in either the horizontal or vertical orientation depending on the job
3D serial cuts out of 3D models or a series of 2D files
can cut any symmetrical or irregular shape
perfect for columns and balusters
easy-to-use with built-in rotary and lathe modes
works with the straight cutting wire and also ShapeWire
support for plt, dxf, EPS/AI, RAW 3D and dxf 3D
create creative twisted shapes
easy to use yet offering unlimited possibilities

SHAPEWIRE BAR

temporarily replaces the straight wire to produce interesting rotary shapes
works with both TurnTable and Lathe
perfect for grooves, threads and similar shapes
1 mm thick shapeable wire (reusable)
will heat up to 50 cm long pieces of shapewire bar
easy to install and remove when not needed

WIRED HANDHELD/REMOTE CONTROLLER WITH A DISPLAY

convenient overview of current machine parameters:
- wire location
- wire heating status and power
- wire tension (independent axis control units)
- limit switches status
on-the-fly adjustment of parameters during a cut: increase/decrease wire temperature, increase/decrease cutting speed
start/stop/continue a cut
full manual control of machine movement in all axes

TITANIUM WIRE ®

best resistant hot wire on the market. Period.
custom made for MegaPlot machines to ensure limited stretching and breakage
can withstand higher temperature to increase cutting speed
can be tensioned more to ensure accurate cuts
available as a paid upgrade for all Twister Pro series units
included in the price of all independent axis units
available in new diameters: 0.15, 0.25, 0.30, 0.35, 0.45, 0.55 and 0.6 mm
can be added to an existing machine to improve performance

TECHNICAL SPECIFICATION

WORKING WIDTH = CUTTING WIRE LENGTH	60 cm
WORKING LENGTH	130 cm (Small) 240 cm (Medium) 305 cm (Large)
WORKING HEIGHT	122 cm
MAX. TRANSIT SPEED	280 cm/min.
CUTTING WIRE	0.15 mm, NiCr or TitaniumWire, spring-tensioned
X & Y DRIVES	stepper motors & 10T2.5 cog belts
SOFTWARE RESOLUTION	0.001 mm
OPTIONAL ACCESSORIES	TurnTable/Lathe ShapeWire Tool TitaniumWire Handheld/Remote Controller
ACCESSORIES NOT AVAILABLE IN P60 SERIES	Independent Axis Control DoubleWire Pneumatic Wire Tensioning BarCode Scanning 5-wire MW add-on
POWER REQUIREMENTS	230V, 50Hz, up to 500W
PC REQUIREMENTS	Windows XP, Vista, 7, 8 or 10
SOFTWARE	iXshaper, unlimited free updates, support for: plt, dxf, EPS/AI, RAW 3D
WARRANTY	complete 5-year warranty on EXW (ex-works) basis
INCLUDED IN THE PRICE	hot wire cutting machine ARM-based electronic controller iXshaper software with unlimited free updates a 100-gram spool of cutting wire assembly and operational manuals year-round tech support unlimited free training in our factory in Poland
NOT INCLUDED IN THE PRICE	Windows PC necessary to control the machine graphics software, e.g. CorelDraw installation and training on site (if required)

Complete 5-year warranty on all CNC hot wire foam cutters made by MEGAPLOT with 24/7 technical support at your disposal.
